Виды неподвижных уплотнений

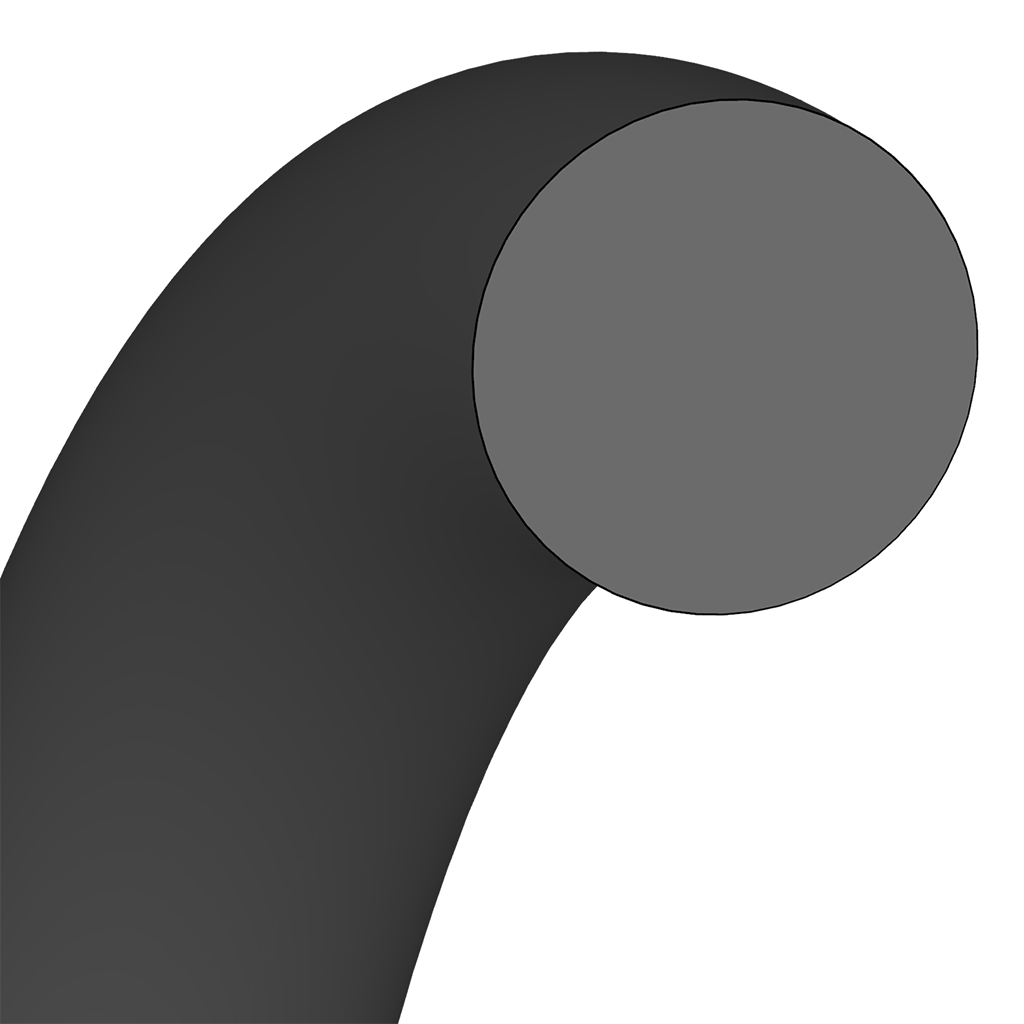

Кольца круглого сечения ГОСТ 9833 / ГОСТ 18829
В отличие от международного обозначения уплотнительных колец круглого сечения по внутреннему диаметру, в советском стандарте кольца обозначались по диаметру обжимаемого вала (штока) и диаметру уплотняемого отверстия (цилиндра). Из-за этого, к примеру, кольцо 010-013-19 имеет внутренний диаметр 9.7мм.
| Обозначение ГОСТ | Внутренний диаметр, мм | Диаметр сечения, мм | Предельные отклонения внутреннего диаметра, мм | Вес, г |
|---|
| 003-005-14 | 2.8 | 1.4 | -0.2 | 0.02 |
| 004-006-14 | 3.8 | 1.4 | -0.2 | 0.03 |
| 005-007-14 | 4.7 | 1.4 | -0.2 | 0.03 |
| 006-008-14 | 5.7 | 1.4 | -0.2 | 0.03 |
| 008-010-14 | 7.7 | 1.4 | -0.3 | 0.04 |
| 003-006-19 | 2.8 | 1.9 | -0.2 | 0.04 |
| 004-007-19 | 3.8 | 1.9 | -0.2 | 0.05 |
| 005-008-19 | 4.7 | 1.9 | -0.2 | 0.06 |
| 006-009-19 | 5.7 | 1.9 | -0.2 | 0.07 |
| 007-010-19 | 6.7 | 1.9 | -0.3 | 0.08 |
| 008-011-19 | 7.7 | 1.9 | -0.3 | 0.09 |
| 009-012-19 | 8.7 | 1.9 | -0.3 | 0.09 |
| 010-013-19 | 9.7 | 1.9 | -0.3 | 0.10 |
| 011-014-19 | 10.6 | 1.9 | -0.3 | 0.11 |
| 012-015-19 | 11.6 | 1.9 | -0.3 | 0.12 |
| 013-016-19 | 12.6 | 1.9 | -0.3 | 0.13 |
| 014-017-19 | 13.6 | 1.9 | -0.3 | 0.14 |
| 015-018-19 | 14.6 | 1.9 | -0.3 | 0.15 |
| 016-019-19 | 15.6 | 1.9 | -0.3 | 0.16 |
| 017-020-19 | 16.6 | 1.9 | -0.3 | 0.17 |
| 018-021-19 | 17.5 | 1.9 | -0.4 | 0.17 |
| 019-022-19 | 18.5 | 1.9 | -0.4 | 0.18 |
| 020-023-19 | 19.5 | 1.9 | -0.4 | 0.19 |
| 021-024-19 | 20.5 | 1.9 | -0.4 | 0.20 |
| 022-025-19 | 21.5 | 1.9 | -0.4 | 0.21 |
| 023-026-19 | 22.5 | 1.9 | -0.4 | 0.22 |
| 024-027-19 | 23.5 | 1.9 | -0.4 | 0.23 |
| 025-028-19 | 24.5 | 1.9 | -0.4 | 0.24 |
| 026-029-19 | 25.5 | 1.9 | -0.5 | 0.24 |
| 027-030-19 | 26.5 | 1.9 | -0.5 | 0.25 |
| 028-031-19 | 27.5 | 1.9 | -0.5 | 0.26 |
| 029-032-19 | 28.5 | 1.9 | -0.5 | 0.27 |
| 030-033-19 | 29.5 | 1.9 | -0.5 | 0.28 |
| 032-035-19 | 31.0 | 1.9 | -0.6 | 0.29 |
| 033-036-19 | 32.0 | 1.9 | -0.6 | 0.30 |
| 034-037-19 | 33.0 | 1.9 | -0.6 | 0.31 |
| 035-038-19 | 34.0 | 1.9 | -0.6 | 0.32 |
| 036-039-19 | 35.0 | 1.9 | -0.6 | 0.33 |
| 037-040-19 | 36.0 | 1.9 | -0.6 | 0.34 |
| 038-041-19 | 37.0 | 1.9 | -0.6 | 0.35 |
| 039-042-19 | 38.0 | 1.9 | -0.7 | 0.36 |
| 040-043-19 | 39.0 | 1.9 | -0.7 | 0.37 |
| 042-045-19 | 41.0 | 1.9 | -0.7 | 0.38 |
| 045-048-19 | 44.0 | 1.9 | -0.7 | 0.41 |
| 047-050-19 | 46.0 | 1.9 | -0.8 | 0.43 |
| 048-052-19 | 47.0 | 1.9 | -0.8 | 0.44 |
| 050-053-19 | 49.0 | 1.9 | -0.8 | 0.45 |
| 004-008-25 | 3.8 | 2.5 | -0.2 | 0.10 |
| 005-009-25 | 4.7 | 2.5 | -0.2 | 0.11 |
| 006-010-25 | 5.7 | 2.5 | -0.2 | 0.13 |
| 007-011-25 | 6.7 | 2.5 | -0.3 | 0.14 |
| 008-012-25 | 7.7 | 2.5 | -0.3 | 0.15 |
| 009-013-25 | 8.7 | 2.5 | -0.3 | 0.18 |
| 010-014-25 | 9.7 | 2.5 | -0.3 | 0.20 |
| 011-015-25 | 10.6 | 2.5 | -0.3 | 0.22 |
| 012-016-25 | 11.6 | 2.5 | -0.3 | 0.23 |
| 013-017-25 | 12.6 | 2.5 | -0.3 | 0.25 |
| 014-018-25 | 13.6 | 2.5 | -0.3 | 0.27 |
| 015-019-25 | 14.6 | 2.5 | -0.3 | 0.29 |
| 016-020-25 | 15.6 | 2.5 | -0.3 | 0.30 |
| 017-021-25 | 16.6 | 2.5 | -0.3 | 0.31 |
| 018-022-25 | 17.5 | 2.5 | -0.4 | 0.32 |
| 019-023-25 | 18.5 | 2.5 | -0.4 | 0.33 |
| 020-024-25 | 19.5 | 2.5 | -0.4 | 0.34 |
| 021-025-25 | 20.5 | 2.5 | -0.4 | 0.35 |
| 022-026-25 | 21.5 | 2.5 | -0.4 | 0.37 |
| 023-027-25 | 22.5 | 2.5 | -0.4 | 0.39 |
| 024-028-25 | 23.5 | 2.5 | -0.4 | 0.40 |
| 025-029-25 | 24.5 | 2.5 | -0.4 | 0.41 |
| 026-030-25 | 25.5 | 2.5 | -0.5 | 0.42 |
| 027-031-25 | 26.5 | 2.5 | -0.5 | 0.45 |
| 028-032-25 | 27.5 | 2.5 | -0.5 | 0.46 |
| 029-033-25 | 28.5 | 2.5 | -0.5 | 0.48 |
| 030-034-25 | 29.5 | 2.5 | -0.5 | 0.49 |
| 032-036-25 | 31.0 | 2.5 | -0.6 | 0.52 |
| 034-038-25 | 33.0 | 2.5 | -0.6 | 0.55 |
| 036-040-25 | 35.0 | 2.5 | -0.6 | 0.57 |
| 037-041-25 | 36.0 | 2.5 | -0.6 | 0.59 |
| 038-042-25 | 37.0 | 2.5 | -0.6 | 0.61 |
| 040-044-25 | 39.0 | 2.5 | -0.7 | 0.64 |
| 041-045-25 | 40.0 | 2.5 | -0.7 | 0.66 |
| 042-046-25 | 41.0 | 2.5 | -0.7 | 0.67 |
| 043-047-25 | 42.0 | 2.5 | -0.7 | 0.68 |
| 044-048-25 | 43.0 | 2.5 | -0.7 | 0.70 |
| 045-049-25 | 44.0 | 2.5 | -0.7 | 0.72 |
| 046-050-25 | 45.0 | 2.5 | -0.8 | 0.73 |
| 048-052-25 | 47.0 | 2.5 | -0.8 | 0.76 |
| 050-054-25 | 49.0 | 2.5 | -0.8 | 0.79 |
| 051-055-25 | 50.0 | 2.5 | -0.8 | 0.81 |
| 052-056-25 | 51.0 | 2.5 | -0.9 | 0.83 |
| 054-058-25 | 53.0 | 2.5 | -0.9 | 0.86 |
| 055-059-25 | 54.0 | 2.5 | -0.9 | 0.87 |
| 056-060-25 | 55.0 | 2.5 | -0.9 | 0.89 |
| 058-062-25 | 57.0 | 2.5 | -1 | 0.91 |
| 060-064-25 | 59.0 | 2.5 | -1 | 0.94 |
| 061-065-25 | 60.0 | 2.5 | -1 | 0.96 |
| 062-066-25 | 61.0 | 2.5 | -1 | 0.98 |
| 064-068-25 | 62.5 | 2.5 | -1 | 1.00 |
| 065-070-25 | 63.5 | 2.5 | -1.1 | 1.03 |
| 068-072-25 | 66.5 | 2.5 | -1.1 | 1.06 |
| 070-075-25 | 68.5 | 2.5 | -1.1 | 1.09 |
| 072-078-25 | 70.5 | 2.5 | -1.2 | 1.13 |
| 075-080-25 | 73.5 | 2.5 | -1.2 | 1.17 |
| 078-082-25 | 76.5 | 2.5 | -1.2 | 1.22 |
| 080-085-25 | 78.5 | 2.5 | -1.3 | 1.25 |
| 082-088-25 | 80.5 | 2.5 | -1.3 | 1.28 |
| 085-090-25 | 83.5 | 2.5 | -1.4 | 1.33 |
| 088-092-25 | 86.5 | 2.5 | -1.4 | 1.37 |
| 090-095-25 | 88.5 | 2.5 | -1.4 | 1.40 |
| 092-098-25 | 90.5 | 2.5 | -1.5 | 1.43 |
| 095-100-25 | 93.0 | 2.5 | -1.5 | 1.47 |
| 098-102-25 | 96.0 | 2.5 | -1.5 | 1.52 |
| 100-105-25 | 98.0 | 2.5 | -1.6 | 1.55 |
| 102-108-25 | 100.0 | 2.5 | -1.6 | 1.58 |
| 105-110-25 | 103.0 | 2.5 | -1.6 | 1.63 |
| 108-112-25 | 106.0 | 2.5 | -1.7 | 1.67 |
| 110-115-25 | 108.0 | 2.5 | -1.7 | 1.70 |
| 112-118-25 | 110.0 | 2.5 | -1.8 | 1.74 |
| 115-120-25 | 113.0 | 2.5 | -1.8 | 1.78 |
| 118-122-25 | 116.0 | 2.5 | -1.8 | 1.82 |
| 120-125-25 | 118.0 | 2.5 | -1.9 | 1.86 |
| 122-128-25 | 120.0 | 2.5 | -1.9 | 1.89 |
| 125-130-25 | 122.5 | 2.5 | -2 | 1.93 |
| 130-135-25 | 127.5 | 2.5 | -2 | 2.00 |
| 135-140-25 | 132.5 | 2.5 | -2.2 | 2.08 |
| 140-145-25 | 137.5 | 2.5 | -2.2 | 2.16 |
| 145-150-25 | 142.5 | 2.5 | -2.2 | 2.24 |
| 150-155-25 | 147.5 | 2.5 | -2.4 | 2.31 |
| 010-015-30 | 9.7 | 3 | -0.3 | 0.28 |
| 011-016-30 | 10.6 | 3 | -0.3 | 0.30 |
| 012-017-30 | 11.6 | 3 | -0.3 | 0.32 |
| 013-018-30 | 12.6 | 3 | -0.3 | 0.35 |
| 014-019-30 | 13.6 | 3 | -0.3 | 0.37 |
| 015-020-30 | 14.6 | 3 | -0.3 | 0.39 |
| 016-021-30 | 15.6 | 3 | -0.3 | 0.41 |
| 017-022-30 | 16.6 | 3 | -0.3 | 0.44 |
| 018-023-30 | 17.5 | 3 | -0.4 | 0.46 |
| 019-024-30 | 18.5 | 3 | -0.4 | 0.48 |
| 020-025-30 | 19.5 | 3 | -0.4 | 0.50 |
| 021-026-30 | 20.5 | 3 | -0.4 | 0.52 |
| 022-027-30 | 21.5 | 3 | -0.4 | 0.54 |
| 023-028-30 | 22.5 | 3 | -0.4 | 0.57 |
| 024-029-30 | 23.5 | 3 | -0.4 | 0.59 |
| 025-030-30 | 24.5 | 3 | -0.4 | 0.61 |
| 026-031-30 | 25.5 | 3 | -0.5 | 0.63 |
| 027-032-30 | 26.5 | 3 | -0.5 | 0.66 |
| 028-033-30 | 27.5 | 3 | -0.5 | 0.68 |
| 029-034-30 | 28.5 | 3 | -0.5 | 0.70 |
| 030-035-30 | 29.5 | 3 | -0.5 | 0.72 |
| 032-037-30 | 31.0 | 3 | -0.6 | 0.75 |
| 033-038-30 | 32.0 | 3 | -0.6 | 0.78 |
| 034-039-30 | 33.0 | 3 | -0.6 | 0.80 |
| 035-040-30 | 34.0 | 3 | -0.6 | 0.81 |
| 036-041-30 | 35.0 | 3 | -0.6 | 0.84 |
| 038-042-30 | 36.0 | 3 | -0.6 | 0.87 |
| 040-045-30 | 39.0 | 3 | -0.7 | 0.92 |
| 042-048-30 | 41.0 | 3 | -0.7 | 0.98 |
| 045-050-30 | 44.0 | 3 | -0.7 | 1.04 |
| 048-052-30 | 46.0 | 3 | -0.8 | 1.09 |
| 050-055-30 | 49.0 | 3 | -0.8 | 1.20 |
| 052-058-30 | 51.0 | 3 | -0.9 | 1.20 |
| 051-056-30 | 50.0 | 3 | -0.8 | 1.25 |
| 055-060-30 | 54.0 | 3 | -0.9 | 1.30 |
| 056-061-30 | 55.0 | 3 | -0.9 | 1.35 |
| 058-063-30 | 57.0 | 3 | -1 | 1.38 |
| 060-065-30 | 59.0 | 3 | -1 | 1.40 |
| 063-068-30 | 62.0 | 3 | -1 | 1.48 |
| 065-070-30 | 63.5 | 3 | -1.1 | 1.50 |
| 066-071-30 | 64.5 | 3 | -1.1 | 1.55 |
| 070-075-30 | 68.5 | 3 | -1.1 | 1.60 |
| 071-076-30 | 69.5 | 3 | -1.1 | 1.65 |
| 075-080-30 | 73.5 | 3 | -1.2 | 1.70 |
| 080-085-30 | 78.5 | 3 | -1.3 | 1.80 |
| 082-088-30 | 80.5 | 3 | -1.3 | 1.85 |
| 085-090-30 | 83.5 | 3 | -1.4 | 1.90 |
| 088-092-30 | 85.5 | 3 | -1.4 | 1.97 |
| 090-095-30 | 88.5 | 3 | -1.4 | 2.00 |
| 092-098-30 | 90.5 | 3 | -1.5 | 2.08 |
| 095-100-30 | 93.0 | 3 | -1.5 | 2.10 |
| 098-102-30 | 95.0 | 3 | -1.5 | 2.18 |
| 100-105-30 | 98.0 | 3 | -1.6 | 2.20 |
| 102-108-30 | 100.0 | 3 | -1.6 | 2.29 |
| 105-110-30 | 103.0 | 3 | -1.6 | 2.35 |
| 108-112-30 | 105.0 | 3 | -1.7 | 2.40 |
| 110-115-30 | 108.0 | 3 | -1.7 | 2.47 |
| 112-118-30 | 110.0 | 3 | -1.8 | 2.51 |
| 115-120-30 | 113.0 | 3 | -1.8 | 2.60 |
| 120-125-30 | 118.0 | 3 | -1.9 | 2.70 |
| 125-130-30 | 122.5 | 3 | -2 | 2.80 |
| 130-135-30 | 127.5 | 3 | -2 | 2.90 |
| 135-140-30 | 132.5 | 3 | -2.2 | 3.00 |
| 140-145-30 | 137.5 | 3 | -2.2 | 3.10 |
| 145-150-30 | 142.5 | 3 | -2.2 | 3.20 |
| 150-155-30 | 147.5 | 3 | -2.4 | 3.30 |
| 014-020-36 | 13.6 | 3.6 | -0.3 | 0.55 |
| 015-021-36 | 14.6 | 3.6 | -0.3 | 0.58 |
| 016-022-36 | 15.6 | 3.6 | -0.3 | 0.61 |
| 017-023-36 | 16.6 | 3.6 | -0.3 | 0.65 |
| 018-024-36 | 17.5 | 3.6 | -0.4 | 0.67 |
| 019-025-36 | 18.5 | 3.6 | -0.4 | 0.71 |
| 020-026-36 | 19.5 | 3.6 | -0.4 | 0.74 |
| 021-027-36 | 20.5 | 3.6 | -0.4 | 0.77 |
| 022-028-36 | 21.5 | 3.6 | -0.4 | 0.80 |
| 023-029-36 | 22.5 | 3.6 | -0.4 | 0.83 |
| 024-030-36 | 23.5 | 3.6 | -0.4 | 0.87 |
| 025-031-36 | 24.5 | 3.6 | -0.4 | 0.90 |
| 026-032-36 | 25.5 | 3.6 | -0.5 | 0.93 |
| 027-033-36 | 26.5 | 3.6 | -0.5 | 0.96 |
| 028-034-36 | 27.5 | 3.6 | -0.5 | 0.99 |
| 029-035-36 | 28.5 | 3.6 | -0.5 | 1.02 |
| 030-036-36 | 29.5 | 3.6 | -0.5 | 1.06 |
| 032-038-36 | 31.0 | 3.6 | -0.6 | 1.13 |
| 034-040-36 | 33.0 | 3.6 | -0.6 | 1.17 |
| 035-041-36 | 34.0 | 3.6 | -0.6 | 1.21 |
| 036-042-36 | 35.0 | 3.6 | -0.6 | 1.25 |
| 038-044-36 | 37.0 | 3.6 | -0.6 | 1.30 |
| 039-045-36 | 38.0 | 3.6 | -0.7 | 1.33 |
| 040-046-36 | 39.0 | 3.6 | -0.7 | 1.36 |
| 042-048-36 | 41.0 | 3.6 | -0.7 | 1.43 |
| 044-050-36 | 43.0 | 3.6 | -0.7 | 1.49 |
| 045-051-36 | 44.0 | 3.6 | -0.7 | 1.52 |
| 046-052-36 | 45.0 | 3.6 | -0.8 | 1.55 |
| 048-054-36 | 47.0 | 3.6 | -0.8 | 1.62 |
| 049-055-36 | 48.0 | 3.6 | -0.8 | 1.65 |
| 050-056-36 | 49.0 | 3.6 | -0.8 | 1.68 |
| 052-058-36 | 51.0 | 3.6 | -0.9 | 1.74 |
| 054-060-36 | 53.0 | 3.6 | -0.9 | 1.81 |
| 055-061-36 | 54.0 | 3.6 | -0.9 | 1.84 |
| 056-062-36 | 55.0 | 3.6 | -0.9 | 1.87 |
| 057-063-36 | 56.0 | 3.6 | -0.9 | 1.90 |
| 058-064-36 | 57.0 | 3.6 | -1 | 1.94 |
| 059-065-36 | 58.0 | 3.6 | -1 | 1.97 |
| 060-066-36 | 59.0 | 3.6 | -1 | 2.00 |
| 062-068-36 | 61.0 | 3.6 | -1 | 2.07 |
| 063-069-36 | 62.0 | 3.6 | -1 | 2.10 |
| 064-070-36 | 62.5 | 3.6 | -1 | 2.11 |
| 065-071-36 | 63.5 | 3.6 | -1.1 | 2.14 |
| 066-072-36 | 64.5 | 3.6 | -1.1 | 2.18 |
| 068-074-36 | 66.5 | 3.6 | -1.1 | 2.24 |
| 069-075-36 | 67.5 | 3.6 | -1.1 | 2.27 |
| 070-076-36 | 68.5 | 3.6 | -1.1 | 2.31 |
| 071-077-36 | 69.5 | 3.6 | -1.1 | 2.35 |
| 072-078-36 | 70.5 | 3.6 | -1.2 | 2.37 |
| 074-080-36 | 72.5 | 3.6 | -1.2 | 2.43 |
| 075-081-36 | 73.5 | 3.6 | -1.2 | 2.47 |
| 076-082-36 | 74.5 | 3.6 | -1.2 | 2.50 |
| 078-084-36 | 76.5 | 3.6 | -1.2 | 2.56 |
| 079-085-36 | 77.5 | 3.6 | -1.3 | 2.59 |
| 080-086-36 | 78.5 | 3.6 | -1.3 | 2.63 |
| 082-088-36 | 80.5 | 3.6 | -1.3 | 2.69 |
| 084-090-36 | 82.5 | 3.6 | -1.3 | 2.75 |
| 085-091-36 | 83.5 | 3.6 | -1.4 | 2.79 |
| 086-092-36 | 84.5 | 3.6 | -1.4 | 2.82 |
| 088-094-36 | 86.5 | 3.6 | -1.4 | 2.88 |
| 089-095-36 | 87.5 | 3.6 | -1.4 | 2.91 |
| 090-096-36 | 88.5 | 3.6 | -1.4 | 2.95 |
| 092-098-36 | 90.5 | 3.6 | -1.5 | 3.01 |
| 094-100-36 | 92.0 | 3.6 | -1.5 | 3.06 |
| 095-101-36 | 93.0 | 3.6 | -1.5 | 3.09 |
| 096-102-36 | 94.0 | 3.6 | -1.5 | 3.12 |
| 098-104-36 | 96.0 | 3.6 | -1.5 | 3.18 |
| 099-105-36 | 97.0 | 3.6 | -1.5 | 3.22 |
| 100-106-36 | 98.0 | 3.6 | -1.6 | 3.25 |
| 102-108-36 | 100.0 | 3.6 | -1.6 | 3.31 |
| 104-110-36 | 102.0 | 3.6 | -1.6 | 3.38 |
| 105-111-36 | 103.0 | 3.6 | -1.6 | 3.41 |
| 106-112-36 | 104.0 | 3.6 | -1.7 | 3.44 |
| 108-114-36 | 106.0 | 3.6 | -1.7 | 3.50 |
| 109-115-36 | 107.0 | 3.6 | -1.7 | 3.54 |
| 110-116-36 | 108.0 | 3.6 | -1.7 | 3.57 |
| 112-118-36 | 110.0 | 3.6 | -1.8 | 3.66 |
| 114-120-36 | 112.0 | 3.6 | -1.8 | 3.70 |
| 115-121-36 | 113.0 | 3.6 | -1.8 | 3.73 |
| 118-124-36 | 116.0 | 3.6 | -1.8 | 3.82 |
| 120-126-36 | 118.0 | 3.6 | -1.9 | 3.89 |
| 125-130-36 | 121.5 | 3.6 | -2 | 4.00 |
| 130-135-36 | 126.5 | 3.6 | -2 | 4.16 |
| 135-140-36 | 131.5 | 3.6 | -2.2 | 4.32 |
| 140-145-36 | 136.5 | 3.6 | -2.2 | 4.48 |
| 145-150-36 | 141.5 | 3.6 | -2.2 | 4.66 |
| 150-155-36 | 146.5 | 3.6 | -2.4 | 4.80 |
| 155-160-36 | 151.0 | 3.6 | -2.4 | 4.94 |
| 160-165-36 | 156.0 | 3.6 | -2.6 | 5.10 |
| 165-170-36 | 161.0 | 3.6 | -2.6 | 5.26 |
| 170-175-36 | 166.0 | 3.6 | -2.6 | 5.42 |
| 175-180-36 | 171.0 | 3.6 | -2.8 | 5.58 |
| 180-185-36 | 176.0 | 3.6 | -2.8 | 5.74 |
| 185-190-36 | 181.0 | 3.6 | -2.8 | 5.90 |
| 190-195-36 | 186.0 | 3.6 | -3 | 6.06 |
| 195-200-36 | 191.5 | 3.6 | -3 | 6.24 |
| 200-205-36 | 195.5 | 3.6 | -3 | 6.37 |
| 205-210-36 | 200.5 | 3.6 | -3.2 | 6.53 |
| 210-215-36 | 205.5 | 3.6 | -3.2 | 6.69 |
| 215-220-36 | 210.5 | 3.6 | -3.4 | 6.85 |
| 220-225-36 | 216.0 | 3.6 | -3.4 | 7.02 |
| 225-230-36 | 220.0 | 3.6 | -3.4 | 7.15 |
| 230-235-36 | 225.0 | 3.6 | -3.6 | 7.31 |
| 235-240-36 | 230.0 | 3.6 | -3.6 | 7.47 |
| 240-245-36 | 235.0 | 3.6 | -3.6 | 7.65 |
| 245-250-36 | 240.0 | 3.6 | -3.8 | 7.79 |
| 250-255-36 | 245.5 | 3.6 | -3.8 | 7.97 |
| 028-036-46 | 27.5 | 4.6 | -0.5 | 1.68 |
| 030-038-46 | 29.5 | 4.6 | -0.5 | 1.78 |
| 032-040-46 | 31.0 | 4.6 | -0.6 | 1.86 |
| 034-042-46 | 33.0 | 4.6 | -0.6 | 1.96 |
| 035-043-46 | 34.0 | 4.6 | -0.6 | 2.02 |
| 036-044-46 | 35.0 | 4.6 | -0.6 | 2.07 |
| 037-045-46 | 36.0 | 4.6 | -0.6 | 2.12 |
| 038-046-46 | 37.0 | 4.6 | -0.6 | 2.17 |
| 040-048-46 | 39.0 | 4.6 | -0.7 | 2.28 |
| 042-050-46 | 41.0 | 4.6 | -0.7 | 2.38 |
| 044-052-46 | 43.0 | 4.6 | -0.7 | 2.48 |
| 045-053-46 | 44.0 | 4.6 | -0.7 | 2.54 |
| 047-055-46 | 46.0 | 4.6 | -0.8 | 2.64 |
| 048-056-46 | 47.0 | 4.6 | -0.8 | 2.69 |
| 050-058-46 | 49.0 | 4.6 | -0.8 | 2.80 |
| 052-060-46 | 51.0 | 4.6 | -0.9 | 2.90 |
| 054-062-46 | 53.0 | 4.6 | -0.9 | 3.01 |
| 055-063-46 | 54.0 | 4.6 | -0.9 | 3.06 |
| 057-065-46 | 56.0 | 4.6 | -0.9 | 3.16 |
| 058-066-46 | 57.0 | 4.6 | -1 | 3.22 |
| 060-068-46 | 59.0 | 4.6 | -1 | 3.32 |
| 062-070-46 | 61.0 | 4.6 | -1 | 3.42 |
| 063-071-46 | 62.0 | 4.6 | -1 | 3.46 |
| 064-072-46 | 62.5 | 4.6 | -1 | 3.50 |
| 065-073-46 | 63.5 | 4.6 | -1.1 | 3.56 |
| 067-075-46 | 65.5 | 4.6 | -1.1 | 3.66 |
| 068-076-46 | 66.5 | 4.6 | -1.1 | 3.71 |
| 070-078-46 | 68.5 | 4.6 | -1.1 | 3.82 |
| 072-080-46 | 70.5 | 4.6 | -1.2 | 3.92 |
| 074-082-46 | 72.5 | 4.6 | -1.2 | 4.02 |
| 075-083-46 | 73.5 | 4.6 | -1.2 | 4.08 |
| 077-085-46 | 75.5 | 4.6 | -1.2 | 4.18 |
| 078-086-46 | 76.5 | 4.6 | -1.2 | 4.23 |
| 080-088-46 | 78.5 | 4.6 | -1.3 | 4.33 |
| 082-090-46 | 80.5 | 4.6 | -1.3 | 4.44 |
| 085-092-46 | 82.5 | 4.6 | -1.4 | 4.55 |
| 088-095-46 | 85.5 | 4.6 | -1.4 | 4.70 |
| 090-098-46 | 88.5 | 4.6 | -1.4 | 4.86 |
| 092-100-46 | 90.5 | 4.6 | -1.5 | 4.96 |
| 095-102-46 | 92.0 | 4.6 | -1.5 | 5.04 |
| 098-105-46 | 95.0 | 4.6 | -1.5 | 5.20 |
| 100-108-46 | 98.0 | 4.6 | -1.6 | 5.36 |
| 102-110-46 | 100.0 | 4.6 | -1.6 | 5.46 |
| 105-112-46 | 102.0 | 4.6 | -1.6 | 5.56 |
| 108-115-46 | 105.0 | 4.6 | -1.7 | 5.72 |
| 110-118-46 | 108.0 | 4.6 | -1.7 | 5.88 |
| 112-120-46 | 110.0 | 4.6 | -1.8 | 5.98 |
| 115-122-46 | 112.0 | 4.6 | -1.8 | 6.09 |
| 118-125-46 | 115.0 | 4.6 | -1.8 | 6.24 |
| 120-128-46 | 118.0 | 4.6 | -1.9 | 6.40 |
| 122-130-46 | 120.0 | 4.6 | -1.9 | 6.50 |
| 125-135-46 | 122.5 | 4.6 | -2 | 6.64 |
| 130-140-46 | 127.5 | 4.6 | -2 | 6.90 |
| 135-145-46 | 132.5 | 4.6 | -2.2 | 7.16 |
| 140-150-46 | 137.5 | 4.6 | -2.2 | 7.42 |
| 145-155-46 | 142.5 | 4.6 | -2.2 | 7.68 |
| 150-160-46 | 147.5 | 4.6 | -2.4 | 7.94 |
| 155-165-46 | 152.0 | 4.6 | -2.4 | 8.18 |
| 160-170-46 | 157.0 | 4.6 | -2.6 | 8.48 |
| 165-175-46 | 162.0 | 4.6 | -2.6 | 8.70 |
| 170-180-46 | 167.0 | 4.6 | -2.6 | 8.96 |
| 175-185-46 | 172.0 | 4.6 | -2.8 | 9.22 |
| 180-190-46 | 177.0 | 4.6 | -2.8 | 9.48 |
| 185-195-46 | 182.0 | 4.6 | -2.8 | 9.74 |
| 190-200-46 | 187.0 | 4.6 | -3 | 10.00 |
| 195-205-46 | 191.5 | 4.6 | -3 | 10.24 |
| 200-210-46 | 196.5 | 4.6 | -3 | 10.50 |
| 205-215-46 | 201.5 | 4.6 | -3.2 | 10.76 |
| 210-220-46 | 206.5 | 4.6 | -3.2 | 11.02 |
| 215-225-46 | 211.5 | 4.6 | -3.4 | 11.28 |
| 220-230-46 | 216.0 | 4.6 | -3.4 | 11.52 |
| 225-235-46 | 221.0 | 4.6 | -3.4 | 11.78 |
| 230-240-46 | 226.0 | 4.6 | -3.6 | 12.04 |
| 235-245-46 | 231.0 | 4.6 | -3.6 | 12.30 |
| 240-250-46 | 236.0 | 4.6 | -3.6 | 12.56 |
| 245-255-46 | 241.0 | 4.6 | -3.8 | 12.82 |
| 250-260-46 | 245.0 | 4.6 | -3.8 | 13.06 |
| 050-060-58 | 49.0 | 5.8 | -0.8 | 4.55 |
| 053-063-58 | 52.0 | 5.8 | -0.9 | 4.80 |
| 055-065-58 | 54.0 | 5.8 | -0.9 | 4.96 |
| 056-066-58 | 55.0 | 5.8 | -0.9 | 5.05 |
| 060-070-58 | 59.0 | 5.8 | -1 | 5.38 |
| 061-071-58 | 60.0 | 5.8 | -1 | 5.46 |
| 063-073-58 | 61.0 | 5.8 | -1 | 5.54 |
| 065-075-58 | 63.5 | 5.8 | -1.1 | 5.75 |
| 070-080-58 | 68.5 | 5.8 | -1.1 | 6.17 |
| 071-081-58 | 70.0 | 5.8 | -1.1 | 6.29 |
| 075-085-58 | 73.5 | 5.8 | -1.2 | 6.58 |
| 078-088-58 | 76.5 | 5.8 | -1.2 | 6.83 |
| 080-090-58 | 78.5 | 5.8 | -1.3 | 7.00 |
| 082-092-58 | 80.5 | 5.8 | -1.3 | 7.16 |
| 085-095-58 | 83.5 | 5.8 | -1.4 | 7.41 |
| 088-098-58 | 86.5 | 5.8 | -1.4 | 7.66 |
| 090-100-58 | 88.5 | 5.8 | -1.4 | 7.83 |
| 092-102-58 | 90.5 | 5.8 | -1.5 | 7.99 |
| 095-105-58 | 93.0 | 5.8 | -1.5 | 8.20 |
| 098-108-58 | 96.0 | 5.8 | -1.5 | 8.49 |
| 100-110-58 | 98.0 | 5.8 | -1.6 | 8.62 |
| 102-112-58 | 100.0 | 5.8 | -1.6 | 8.78 |
| 105-115-58 | 103.0 | 5.8 | -1.6 | 9.03 |
| 108-118-58 | 106.0 | 5.8 | -1.7 | 9.28 |
| 110-120-58 | 108.0 | 5.8 | -1.7 | 9.45 |
| 112-122-58 | 110.0 | 5.8 | -1.8 | 9.61 |
| 115-125-58 | 113.0 | 5.8 | -1.8 | 9.86 |
| 118-128-58 | 116.0 | 5.8 | -1.8 | 10.11 |
| 120-130-58 | 118.0 | 5.8 | -1.9 | 10.28 |
| 125-135-58 | 122.5 | 5.8 | -2 | 10.65 |
| 130-140-58 | 127.5 | 5.8 | -2 | 11.06 |
| 135-145-58 | 132.5 | 5.8 | -2.2 | 11.48 |
| 140-150-58 | 137.5 | 5.8 | -2.2 | 11.89 |
| 145-155-58 | 142.5 | 5.8 | -2.2 | 12.31 |
| 150-160-58 | 147.5 | 5.8 | -2.4 | 12.72 |
| 155-165-58 | 152.0 | 5.8 | -2.4 | 13.10 |
| 160-170-58 | 157.0 | 5.8 | -2.6 | 13.51 |
| 165-175-58 | 162.0 | 5.8 | -2.6 | 13.93 |
| 170-180-58 | 167.0 | 5.8 | -2.6 | 14.34 |
| 175-185-58 | 172.0 | 5.8 | -2.8 | 14.76 |
| 180-190-58 | 177.0 | 5.8 | -2.8 | 15.17 |
| 185-195-58 | 182.0 | 5.8 | -2.8 | 15.59 |
| 190-200-58 | 187.0 | 5.8 | -3 | 16.00 |
| 195-205-58 | 191.5 | 5.8 | -3 | 16.38 |
| 200-210-58 | 196.5 | 5.8 | -3 | 16.79 |
| 205-215-58 | 201.5 | 5.8 | -3.2 | 17.21 |
| 210-220-58 | 206.5 | 5.8 | -3.2 | 17.62 |
| 215-225-58 | 211.5 | 5.8 | -3.4 | 18.04 |
| 220-230-58 | 216.0 | 5.8 | -3.4 | 18.41 |
| 225-235-58 | 221.0 | 5.8 | -3.4 | 18.82 |
| 230-240-58 | 226.0 | 5.8 | -3.6 | 19.24 |
| 235-245-58 | 231.0 | 5.8 | -3.6 | 19.65 |
| 240-250-58 | 236.0 | 5.8 | -3.6 | 20.07 |
| 245-255-58 | 241.0 | 5.8 | -3.8 | 20.48 |
| 250-260-58 | 245.5 | 5.8 | -3.8 | 20.86 |
| 255-265-58 | 250.5 | 5.8 | -4 | 21.27 |
| 260-270-58 | 255.5 | 5.8 | -4 | 21.69 |
| 265-275-58 | 260.5 | 5.8 | -4 | 22.10 |
| 270-280-58 | 265.5 | 5.8 | -4.3 | 22.52 |
| 275-285-58 | 270.5 | 5.8 | -4.3 | 22.93 |
| 280-290-58 | 275.0 | 5.8 | -4.3 | 23.31 |
| 285-295-58 | 280.0 | 5.8 | -4.3 | 23.72 |
| 290-300-58 | 285.0 | 5.8 | -4.5 | 24.14 |
| 295-305-58 | 290.0 | 5.8 | -4.5 | 24.55 |
| 300-310-58 | 294.5 | 5.8 | -4.5 | 24.92 |
| 305-315-58 | 299.5 | 5.8 | -4.5 | 25.34 |
| 310-320-58 | 304.5 | 5.8 | -5 | 25.75 |
| 315-325-58 | 309.5 | 5.8 | -5 | 26.17 |
| 320-330-58 | 314.5 | 5.8 | -5 | 26.58 |
| 325-335-58 | 319.5 | 5.8 | -5 | 27.00 |
| 330-340-58 | 324.5 | 5.8 | -5 | 27.41 |
| 335-345-58 | 329.5 | 5.8 | -5 | 27.83 |
| 340-350-58 | 334.0 | 5.8 | -5 | 28.20 |
| 345-355-58 | 339.0 | 5.8 | -5 | 28.62 |
| 350-360-58 | 344.0 | 5.8 | -5.5 | 29.03 |
| 355-365-58 | 349.0 | 5.8 | -5.5 | 29.45 |
| 360-370-58 | 354.0 | 5.8 | -5.5 | 29.86 |
| 365-375-58 | 359.0 | 5.8 | -5.5 | 30.28 |
| 370-380-58 | 364.0 | 5.8 | -6 | 30.69 |
| 375-385-58 | 369.0 | 5.8 | -6 | 31.11 |
| 380-390-58 | 373.5 | 5.8 | -6 | 31.48 |
| 390-400-58 | 383.5 | 5.8 | -6 | 32.31 |
| 400-410-58 | 393.5 | 5.8 | -6 | 33.14 |
| 420-430-58 | 413.5 | 5.8 | -6 | 34.80 |
| 430-440-58 | 423.5 | 5.8 | -6 | 35.63 |
| 440-450-58 | 433.5 | 5.8 | -6 | 36.46 |
| 450-460-58 | 443.5 | 5.8 | -6 | 37.29 |
| 460-470-58 | 453.5 | 5.8 | -6 | 38.12 |
| 480-490-58 | 473.5 | 5.8 | -6 | 39.78 |
| 500-510-58 | 493.5 | 5.8 | -6 | 41.44 |
| 082-095-75 | 79.5 | 7.5 | -1.3 | 12.08 |
| 090-102-75 | 87.5 | 7.5 | -1.4 | 13.19 |
| 092-105-75 | 89.5 | 7.5 | -1.4 | 13.46 |
| 095-108-75 | 92.0 | 7.5 | -1.5 | 13.81 |
| 098-110-75 | 95.0 | 7.5 | -1.5 | 14.23 |
| 100-112-75 | 97.0 | 7.5 | -1.5 | 14.50 |
| 102-115-75 | 100.0 | 7.5 | -1.6 | 14.92 |
| 105-118-75 | 103.0 | 7.5 | -1.6 | 15.34 |
| 108-120-75 | 105.0 | 7.5 | -1.7 | 15.62 |
| 110-122-75 | 107.0 | 7.5 | -1.7 | 15.89 |
| 112-125-75 | 110.0 | 7.5 | -1.8 | 16.31 |
| 115-128-75 | 113.0 | 7.5 | -1.8 | 16.73 |
| 118-130-75 | 115.0 | 7.5 | -1.8 | 17.00 |
| 120-132-75 | 117.0 | 7.5 | -1.8 | 17.28 |
| 122-135-75 | 120.0 | 7.5 | -1.9 | 17.70 |
| 125-138-75 | 122.5 | 7.5 | -2 | 18.04 |
| 128-140-75 | 124.5 | 7.5 | -2 | 18.32 |
| 130-142-75 | 126.5 | 7.5 | -2 | 18.60 |
| 132-145-75 | 128.5 | 7.5 | -2.2 | 18.88 |
| 135-150-85 | 129.5 | 8.5 | -2.2 | 24.61 |
| 140-155-85 | 134.5 | 8.5 | -2.2 | 25.50 |
| 145-160-85 | 139.5 | 8.5 | -2.2 | 26.39 |
| 150-165-85 | 144.5 | 8.5 | -2.4 | 27.28 |
| 155-170-85 | 149.5 | 8.5 | -2.4 | 28.17 |
| 160-175-85 | 155.0 | 8.5 | -2.6 | 29.15 |
| 165-180-85 | 160.0 | 8.5 | -2.6 | 30.04 |
| 170-185-85 | 165.0 | 8.5 | -2.6 | 30.94 |
| 175-190-85 | 170.0 | 8.5 | -2.6 | 31.83 |
| 180-195-85 | 175.0 | 8.5 | -2.8 | 32.72 |
| 185-200-85 | 180.0 | 8.5 | -2.8 | 33.61 |
| 190-205-85 | 185.0 | 8.5 | -3 | 34.50 |
| 195-210-85 | 191.5 | 8.5 | -3 | 35.66 |
| 200-215-85 | 196.5 | 8.5 | -3 | 36.55 |
| 205-220-85 | 201.5 | 8.5 | -3.2 | 37.44 |
| 210-225-85 | 206.5 | 8.5 | -3.2 | 38.33 |
| 215-230-85 | 211.5 | 8.5 | -3.4 | 39.23 |
| 220-235-85 | 216.5 | 8.5 | -3.4 | 40.12 |
| 225-240-85 | 221.0 | 8.5 | -3.4 | 40.92 |
| 230-245-85 | 226.0 | 8.5 | -3.6 | 41.81 |
| 235-250-85 | 231.0 | 8.5 | -3.6 | 42.70 |
| 240-255-85 | 236.0 | 8.5 | -3.6 | 43.59 |
| 245-260-85 | 241.0 | 8.5 | -3.8 | 44.49 |
| 250-265-85 | 245.5 | 8.5 | -3.8 | 45.29 |
| 255-270-85 | 250.5 | 8.5 | -4 | 46.18 |
| 260-275-85 | 255.5 | 8.5 | -4 | 47.07 |
| 265-280-85 | 260.5 | 8.5 | -4 | 47.96 |
| 280-295-85 | 275.0 | 8.5 | -4.3 | 50.55 |
| 285-300-85 | 280.0 | 8.5 | -4.3 | 51.44 |
| 300-315-85 | 294.5 | 8.5 | -4.5 | 54.02 |
| 305-320-85 | 299.5 | 8.5 | -4.5 | 54.92 |
| 320-335-85 | 314.5 | 8.5 | -5 | 57.59 |
| 325-340-85 | 319.5 | 8.5 | -5 | 58.48 |
| 340-355-85 | 334.0 | 8.5 | -5 | 61.07 |
| 345-360-85 | 339.0 | 8.5 | -5 | 61.96 |
| 360-375-85 | 354.0 | 8.5 | -5.5 | 64.63 |
| 365-380-85 | 359.0 | 8.5 | -5.5 | 65.53 |
| 380-395-85 | 373.5 | 8.5 | -6 | 68.11 |
| 385-400-85 | 380.5 | 8.5 | -6 | 69.36 |
| 390-405-85 | 383.5 | 8.5 | -6 | 69.89 |
| 400-415-85 | 393.5 | 8.5 | -6 | 71.68 |
| 420-435-85 | 413.5 | 8.5 | -6 | 75.23 |
| 440-455-85 | 433.5 | 8.5 | -6 | 78.79 |
| 450-465-85 | 443.5 | 8.5 | -6 | 80.58 |
| 460-475-85 | 453.5 | 8.5 | -6 | 82.36 |
| 480-495-85 | 473.5 | 8.5 | -6 | 85.93 |
| 500-515-85 | 493.5 | 8.5 | -6 | 89.49 |

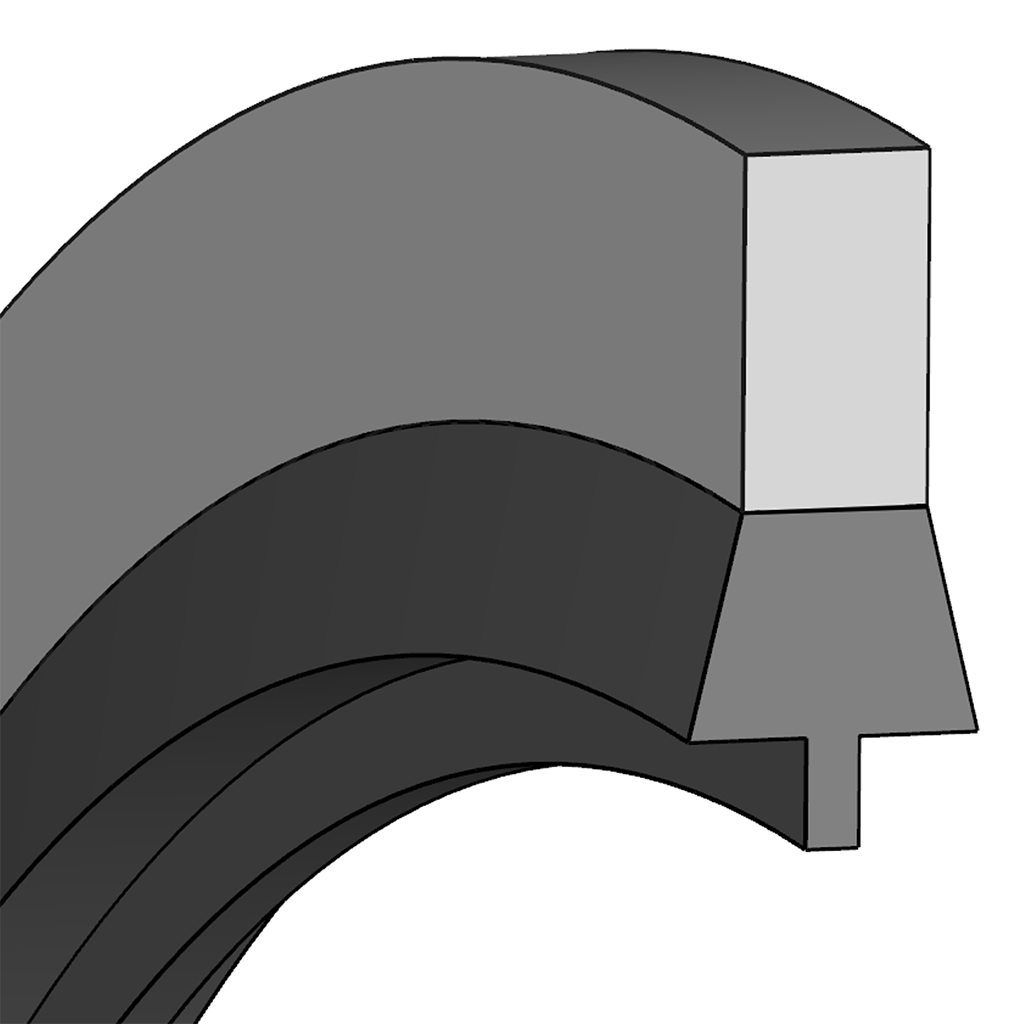

Кольца резинометаллические USIT
Резинометаллические уплотнения используются в качестве неподвижных уплотнений для резьбовых и фланцевых соединений. Имеют ряд преимуществ по сравнению с медными шайбами:
- Более эффективное уплотнение благодаря внутреннему контуру из каучука
- Выбор материала каучука (NBR или FKM) для разных температурных сред
- Очень простая регулировка при монтаже
- Невозможность перекручивания при вращательных движениях
- Возможность многоразового использования

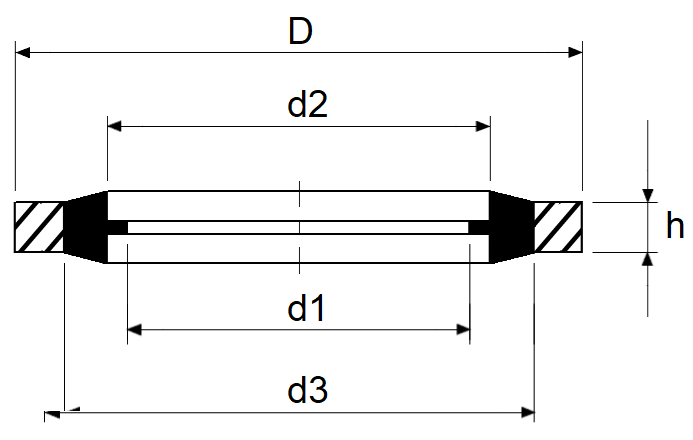

| Метрические размеры | |||||
|---|---|---|---|---|---|
| Резьба / посадочный диаметр | Внутренний диаметр d1 | d2 | d3 | Внешний диаметр D | h |
| M4 | 3.3 | 4.5 | 5.4 | 7 | 1 |
| M8 | 6.4 | 8.7 | 10.4 | 14 | 1 |
| M10 | 8.05 | 10.7 | 12.4 | 16 | 1.5 |
| M12 | 10.2 | 12.7 | 14.4 | 18 | 1.5 |
| M14 | 11.38 | 14.7 | 16.4 | 22 | 1.5 |
| M16 | 13.41 | 16.7 | 18.4 | 24 | 1.5 |
| M18 | 14.76 | 18.7 | 20.4 | 26 | 1.5 |
| M20 | 16.76 | 20.7 | 22.5 | 28 | 1.5 |
| M22 | 18.74 | 22.7 | 24.4 | 30 | 2 |
| Дюймовые размеры | |||||
|---|---|---|---|---|---|
| Резьба / посадочный диаметр | Внутренний диаметр d1 | d2 | d3 | Внешний диаметр D | h |
| 1/4 | 11.18 | 13.74 | 15.21 | 20.57 | 2 |
| 3/8 | 14.76 | 17.28 | 18.75 | 23.8 | 2 |
| 1/2 | 18.24 | 21.54 | 23.01 | 28.58 | 2.47 |
| 5/8 | 20.27 | 23.49 | 24.97 | 31.75 | 2.47 |
| 3/4 | 23.83 | 27.05 | 28.53 | 34.93 | 2.47 |
| 7/8 | 27.51 | 30.81 | 32.29 | 38.1 | 2.47 |
| 1 | 29.92 | 33.89 | 36.88 | 42.8 | 3.4 |
| 1 1/4 | 38.45 | 42.93 | 45.93 | 52.38 | 3.4 |
| 1 1/2 | 44.45 | 48.44 | 51.39 | 58.6 | 3.4 |
| 1 3/4 | 50.42 | 54.89 | 58.3 | 69.85 | 3.4 |
| 2 | 56.26 | 60.58 | 63.63 | 73.03 | 3.4 |
| 2 1/2 | 71.5 | 76.08 | 79.38 | 90.17 | 3.4 |

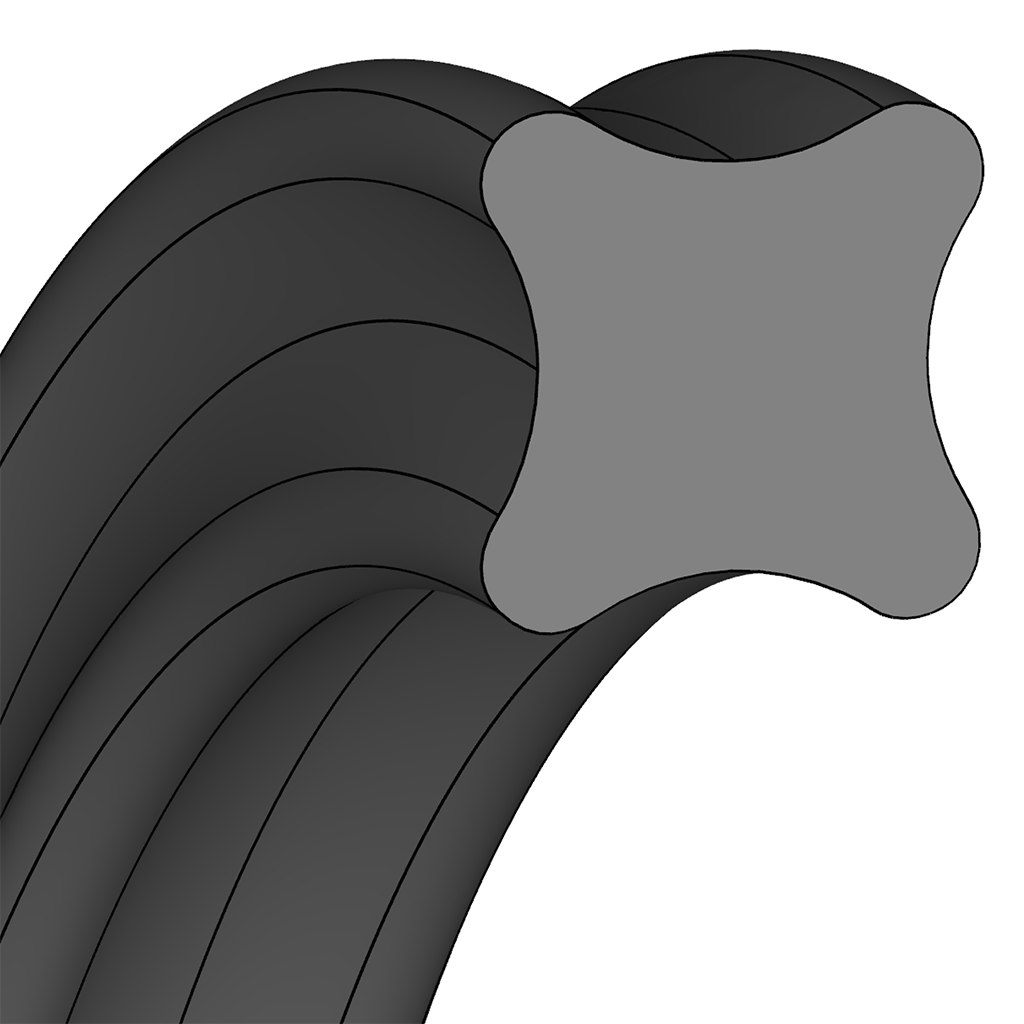

Кольца X-образного сечения
Благодаря X-образной форме кольца посредством его деформации достигается лучший уплотнительный эффект. Давление среды усиливает функцию герметизации.
